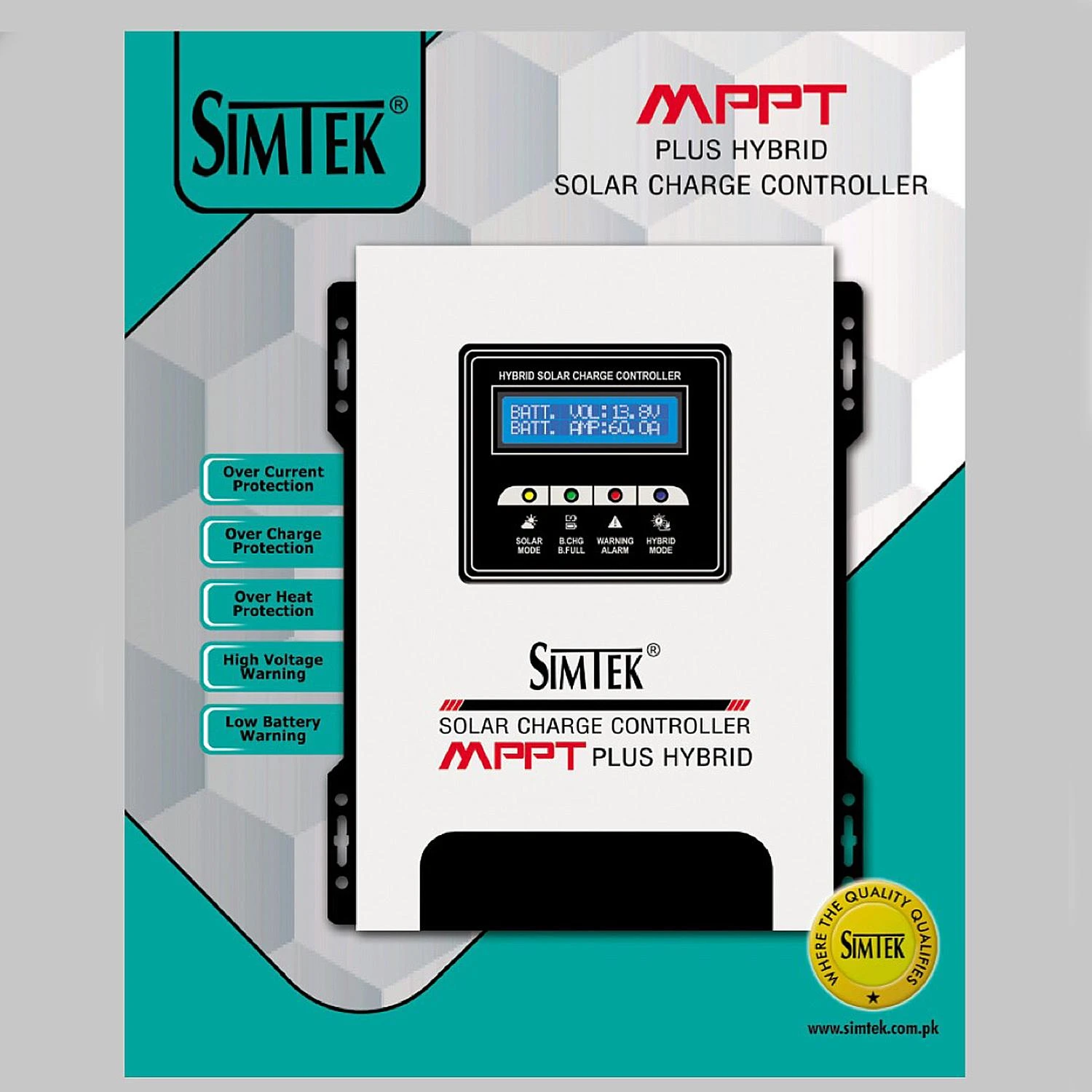

Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V24V

Product Details

Buy Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V24V in Pakistan at best price. Original product with fast delivery available.

Product details of Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V/24V
Hybrid – Battery Charger Auto Cut Off
220v Out You can Connect Charger or UPS.
Daylight WAPDA not Used.
At Evening Auto WAPDA Convert.
Digital display & Led battery Level indicator
96% efficiency in 12-V systems and 97% efficiency in 24-v systems
Wide input voltage range: 15 V to 90 V
High rated output current: 60A
Over-charge and surge protections
System over-temperature and ambient light detection capabilities
MODEL# EC MPPT V3-V4
POWER 60Amp
Solar System Voltage 12V/24V
PV Operation Voltage 15-85Vdc @12V

34-85Vdc @24V

Max. PV open circuit voltage 90V-DC
Max. PV input power 12V 1000W / 24V 2000W
Max. charging current 60A
Conversion Efficiency 98%
Protection High voltage, high temperature protection
BATTERY Battery Type Lead Acid, Tubular, AGM
Charging Algorithm 3-stage: Bulk, Float, Trickle
Equalize charge voltage 14.7v
Output volt without Battery 12V:14.2V

24V:29V

COOLING FAN THERMALLY CONTROLLED
Specifications of Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V/24V
BrandNo BrandSKU288806793_PK-1553169258
What’s in the box 1 x Solar MPPT Controller
